Please send RFQ , we will respond immediately.

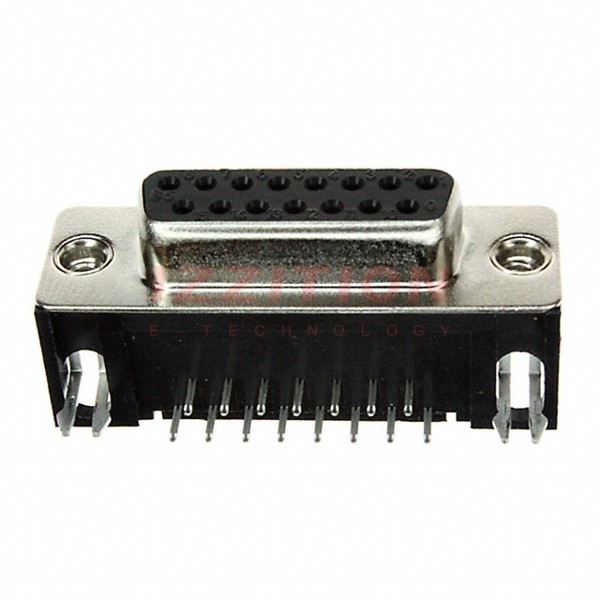

| Part Number | 1734355-1 | 1734350-1 | 1734351-1 | 1734352-1 | 1734354-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 15 | 25 | 9 | 9 | 9 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) | 3 (DB, B) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Primary Material | - | - | - | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | Flash | Flash | Flash |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - | - | UL94 V-0 |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A |
| Backset Spacing | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Features | Board Lock | Board Lock | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock |
