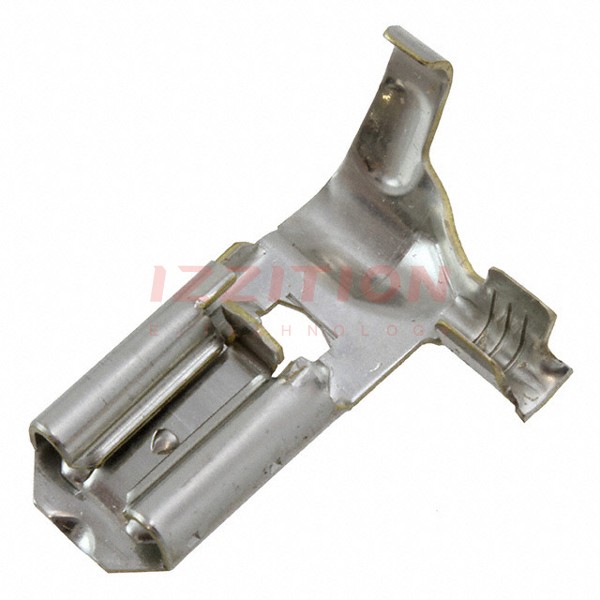

| Part Number | 172762-1 | 172763-1 | 172765-1 | 172764-1 | 172761-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.307" (7.80mm) | 0.307" (7.80mm) | - | 0.307" (7.80mm) |
| Length - Overall | - | - | - | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | 12-14 AWG | 14-18 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
