Please send RFQ , we will respond immediately.

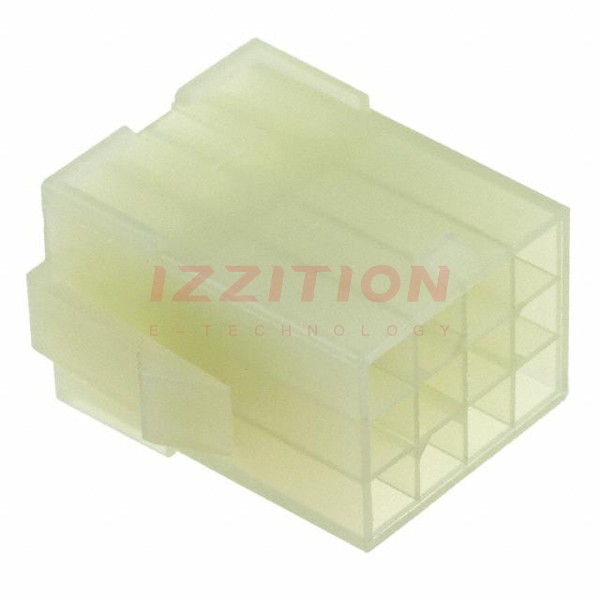

| Part Number | 172333-1 | 172335-1 | 172336-1 | 172343-1 | 172337-1 | 172338-1 | 172339-1 | 172334-1 | 172233-1 | 172330-1 | 172331-1 | 172332-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Plug | Plug | Receptacle, Front Section | Plug | Plug | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 12 | 1 | 2 | 2 | 3 | 4 | 6 | 15 | 2 | 4 | 6 | 9 |
| Pitch | 0.165" (4.20mm) | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Number of Rows | 3 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 2 | 2 | 3 |
| Row Spacing | 0.165" (4.20mm) | - | - | - | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
