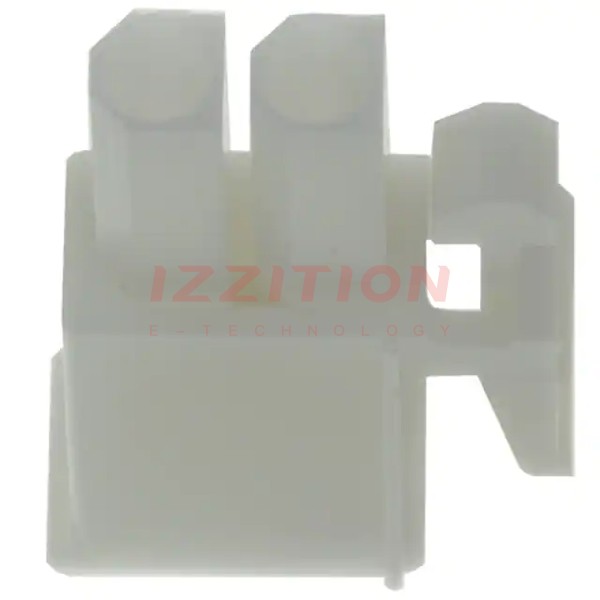

| Part Number | 172165-1 | 172166-1 | 172167-1 | 172168-1 | 172169-1 | 172160-1 | 172161-1 | 172162-1 | 172163-1 | 172164-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Plug |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 2 | 3 | 4 | 6 | 9 | 6 | 9 | 12 | 15 | 1 |
| Pitch | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | - |
| Number of Rows | 1 | 1 | 2 | 2 | 3 | 2 | 3 | 3 | 3 | 1 |
| Row Spacing | - | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Latch Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - |
