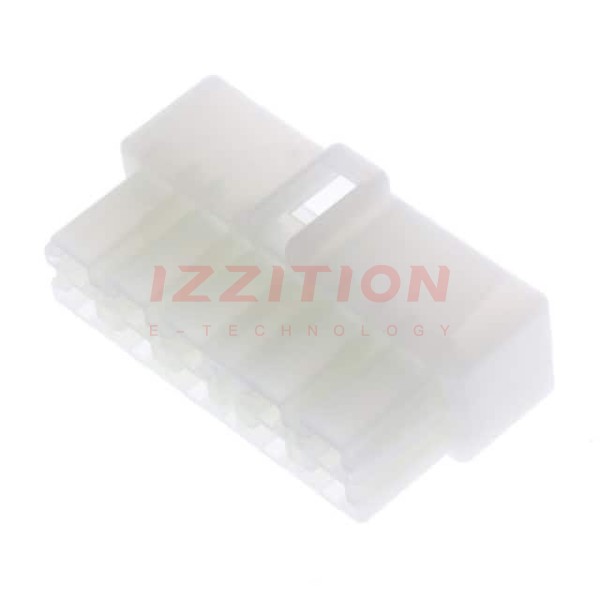

| Part Number | 172137-1 | 172138-1 | 172127-1 | 172130-1 | 172131-1 | 172132-1 | 172133-1 | 172134-1 | 172135-1 | 172136-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Style | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing |
| Terminal Type | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect |
| Gender | Male, Tab | Female, Receptacle | Male, Tab | Female, Receptacle | Male, Tab | Female, Receptacle | Male, Tab | Female, Receptacle | Male, Tab | Female, Receptacle |
| Terminal Size | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Positions | 10 | 10 | 1 | 2 | 3 | 3 | 4 | 4 | 8 | 8 |
| Stacking Direction | Top to Bottom and Side to Side | Top to Bottom and Side to Side | - | Perpendicular | Multiple | Multiple | Top to Bottom and Side to Side | Top to Bottom and Side to Side | Top to Bottom and Side to Side | Top to Bottom and Side to Side |
| For Use With/Related Products | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects | 0.250" (6.35mm) Quick Connects |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
