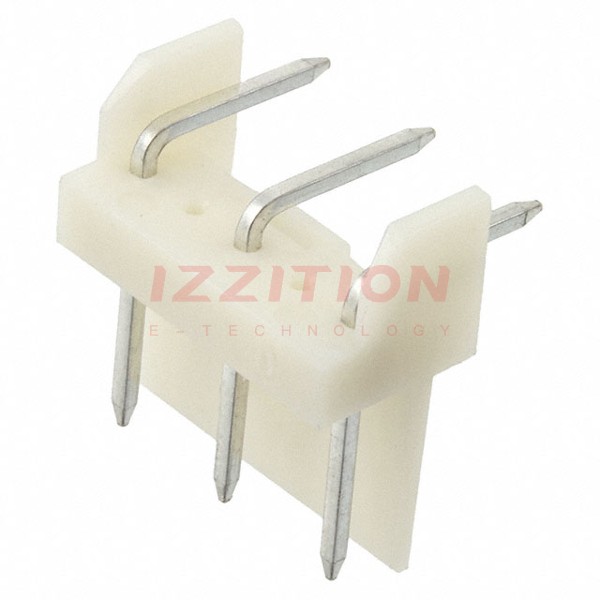

| Part Number | 172107-3 | 172106-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Positions | 3 | 3 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Shrouded - 1 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.295" (7.49mm) | 0.295" (7.49mm) |
| Contact Length - Post | 0.142" (3.60mm) | 0.142" (3.60mm) |
| Overall Contact Length | 0.295" (7.49mm) | 0.551" (14.00mm) |
| Insulation Height | 0.142" (3.60mm) | 0.409" (10.40mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Features | - | - |
| Operating Temperature | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 250VAC, 350VDC | 250VAC, 350VDC |
