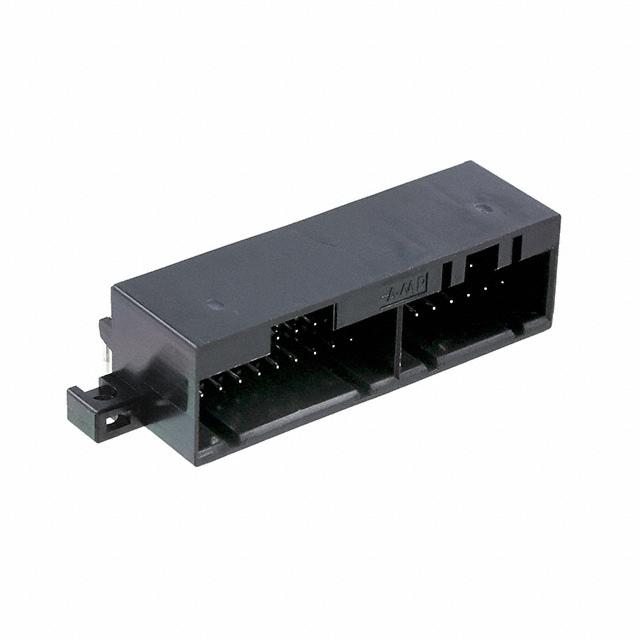

TE Connectivity AMP Connectors 172023-1

Manufacturer No:
172023-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
172023-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 36POS 3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.181" (4.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.335" (8.51mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.713" (18.10mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):5A
Voltage Rating:250VAC, 350VDC
0 Remaining View Similar

In Stock

$9.67
55

Please send RFQ , we will respond immediately.
