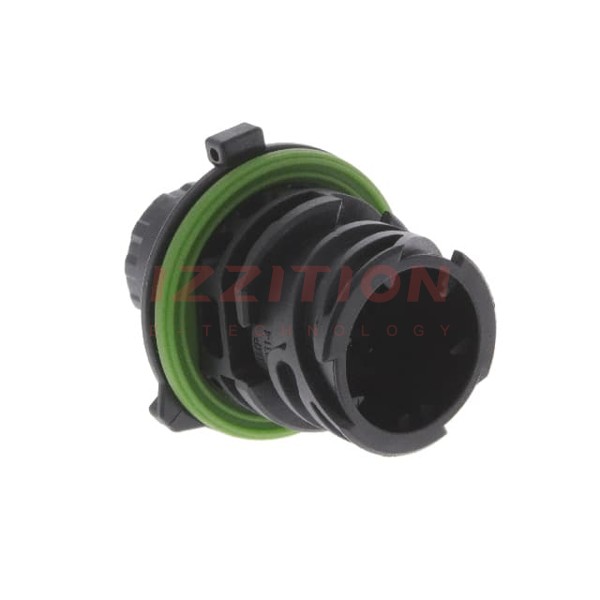

| Part Number | 1718230-4 | 1718230-1 | 1718230-2 | 1718230-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 4 | 7 | 6 | 5 |
| Shell Size - Insert | - | - | - | - |
| Shell Size, MIL | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | A | A | A | A |
| Primary Material | - | - | - | - |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | - | - | - |
| Housing Color | Black | Black | Black | Black |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB | UL94 HB | UL94 HB |
| Features | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
