Please send RFQ , we will respond immediately.

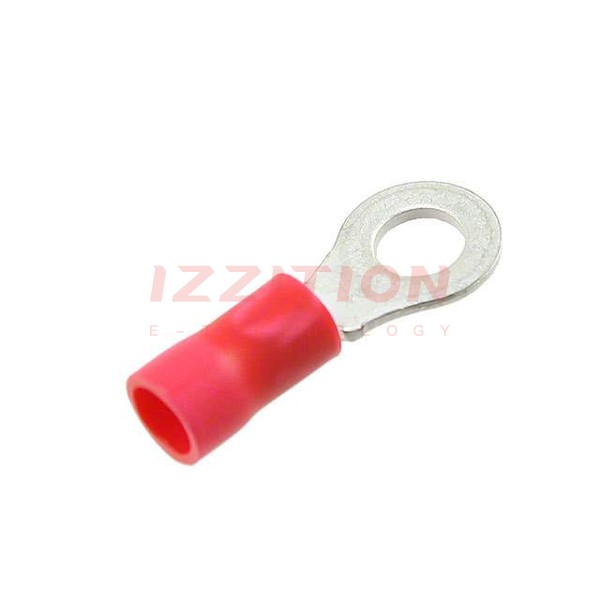

| Part Number | 170781-1 | 170781-2 | 170784-1 | 170721-1 | 170780-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | M5 Stud | 1/4 Stud | 8 Stud | 5 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.472" (12.00mm) | 0.315" (8.00mm) | 0.217" (5.50mm) |
| Length - Overall | 0.630" (16.00mm) | 0.827" (21.00mm) | 1.063" (27.00mm) | 0.630" (16.00mm) | 0.689" (17.50mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 14-16 AWG | 16-22 AWG | 18-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Non-Insulated | Insulated |
| Features | - | - | - | Serrated Termination | - |
| Color | Red | Red | Blue | - | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
