170780-1
  • Share:

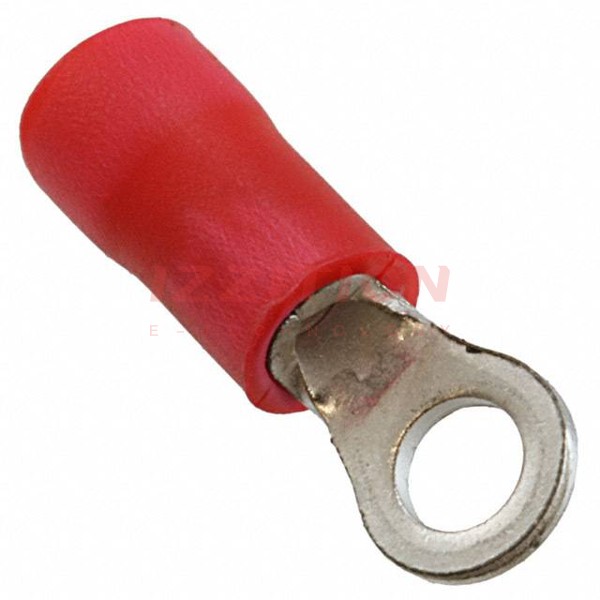

TE Connectivity AMP Connectors 170780-1

Manufacturer No:
170780-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
170780-1 Datasheet
ECAD Model:
-
Description:
CONN RING CIRC 18-22AWG #5 CRIMP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Circular
Stud/Tab Size:5 Stud
Thickness:0.031" (0.79mm)
Width - Outer Edges:0.217" (5.50mm)
Length - Overall:0.689" (17.50mm)
Mounting Type:Free Hanging (In-Line)
Termination:Crimp
Wire Gauge:18-22 AWG
Insulation:Insulated
Features:-
Color:Red
Contact Material:Copper
Contact Finish:Tin
0 Remaining View Similar

In Stock

$0.42
1,191

Please send RFQ , we will respond immediately.

Similar Products

Part Number 170780-1 170781-1   170784-1   170720-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Obsolete Obsolete Active
Terminal Type Circular Circular Circular Circular
Stud/Tab Size 5 Stud 8 Stud 1/4 Stud 5 Stud
Thickness 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm) 0.031" (0.79mm)
Width - Outer Edges 0.217" (5.50mm) 0.315" (8.00mm) 0.472" (12.00mm) 0.217" (5.50mm)
Length - Overall 0.689" (17.50mm) 0.630" (16.00mm) 1.063" (27.00mm) 0.492" (12.50mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Termination Crimp Crimp Crimp Crimp
Wire Gauge 18-22 AWG 18-22 AWG 14-16 AWG 18-22 AWG
Insulation Insulated Insulated Insulated Non-Insulated
Features - - - Serrated Termination
Color Red Red Blue -
Contact Material Copper Copper Copper Copper
Contact Finish Tin Tin Tin Tin
