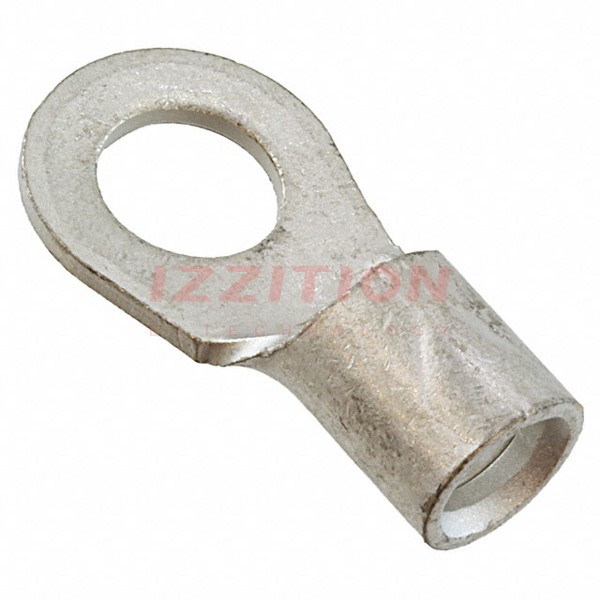

| Part Number | 170728-2 | 170721-2 | 170725-2 | 170728-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | M5 Stud | M5 Stud | M5 Stud |
| Thickness | 0.047" (1.19mm) | 0.031" (0.79mm) | 0.039" (0.99mm) | 0.047" (1.19mm) |
| Width - Outer Edges | 0.472" (12.00mm) | 0.315" (8.00mm) | 0.374" (9.50mm) | 0.472" (12.00mm) |
| Length - Overall | 0.945" (24.00mm) | 0.630" (16.00mm) | 0.787" (20.00mm) | 0.945" (24.00mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 16-22 AWG | 10-12 AWG | 8 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
