Please send RFQ , we will respond immediately.

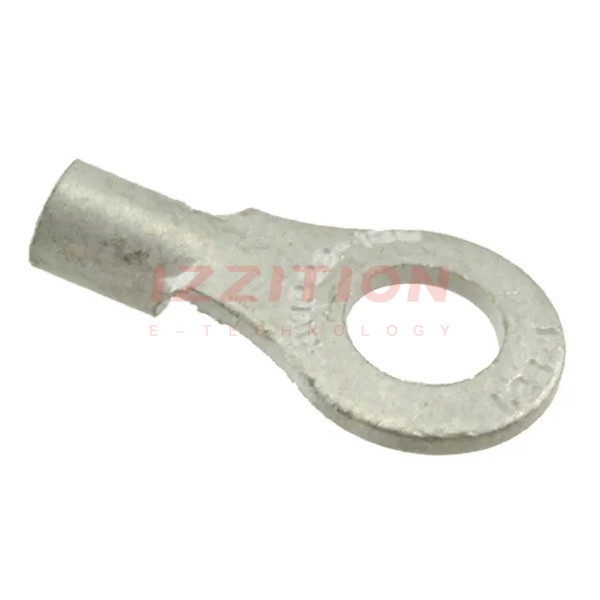

| Part Number | 170721-1 | 170721-2 | 170728-1 | 170781-1 | 170729-1 | 170720-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | M5 Stud | M5 Stud | 8 Stud | M8 Stud | 5 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.047" (1.19mm) | 0.031" (0.79mm) | 0.047" (1.19mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.472" (12.00mm) | 0.315" (8.00mm) | 0.591" (15.00mm) | 0.217" (5.50mm) |
| Length - Overall | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.945" (24.00mm) | 0.630" (16.00mm) | 1.181" (30.00mm) | 0.492" (12.50mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 8 AWG | 18-22 AWG | 8 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | - | Serrated Termination | Serrated Termination |
| Color | - | - | - | Red | - | - |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
