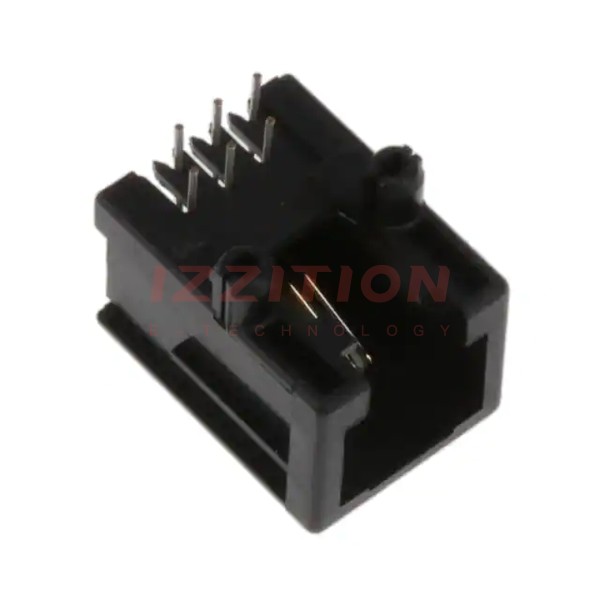

| Part Number | 1705950-1 | 1705951-1 | 1705950-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Jack | Jack | Jack |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) | 8p8c (RJ45, Ethernet) | 6p4c (RJ11, RJ14) |
| Number of Ports | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder |
| Shielding | Unshielded | Unshielded | Unshielded |
| Ratings | Cat3 | Cat3 | Cat3 |
| Features | Board Lock | Board Lock | Board Lock |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - |
| Tab Direction | Down | Down | Down |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
