Please send RFQ , we will respond immediately.

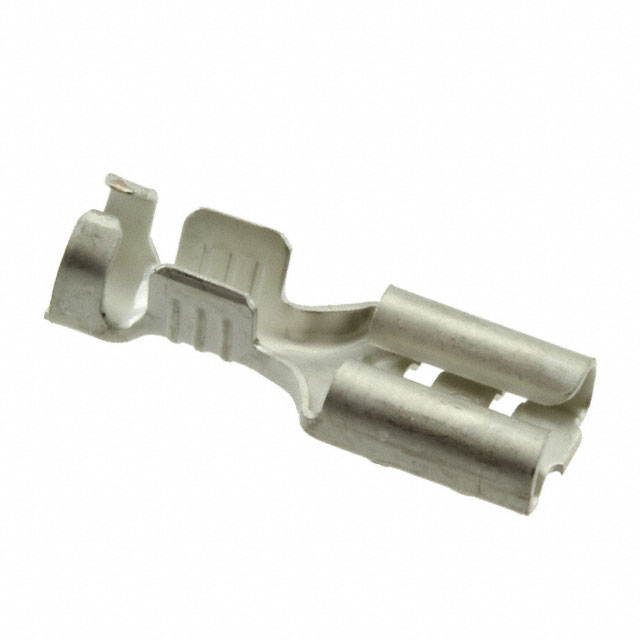

| Part Number | 170467-1 | 170267-1 | 170466-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.252" (6.40mm) | - | 0.252" (6.40mm) |
| Length - Overall | 0.634" (16.10mm) | 0.504" (12.80mm) | 0.634" (16.10mm) |
| Termination | Crimp | Solder | Crimp |
| Wire Gauge | 14-18 AWG | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Phosphor Bronze | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin |
