Please send RFQ , we will respond immediately.

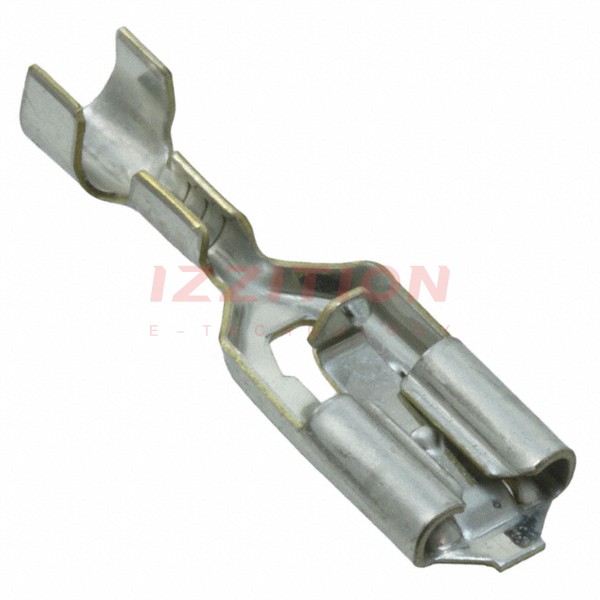

| Part Number | 170330-1 | 170340-1 | 170331-1 | 170335-1 | 170332-1 | 170330-2 | 170333-1 | 170334-1 | 170030-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Male | Female | Female | Female | Female | Female | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.543" (13.80mm) | 0.236" (6.00mm) | - | - | - | - | - | 0.551" (14.00mm) |
| Length - Overall | 0.850" (21.59mm) | 0.957" (24.30mm) | 0.850" (21.59mm) | 1.016" (25.80mm) | 0.850" (21.59mm) | 0.850" (21.59mm) | 1.016" (25.80mm) | 1.016" (25.80mm) | 0.961" (24.40mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 14-20 AWG | 16-20 AWG | 10-15 AWG | 14-18 AWG | 20-24 AWG | 18-22 AWG | 14-18 AWG | 14-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | Tin | Tin | Nickel | Tin | Tin | - |
