Please send RFQ , we will respond immediately.

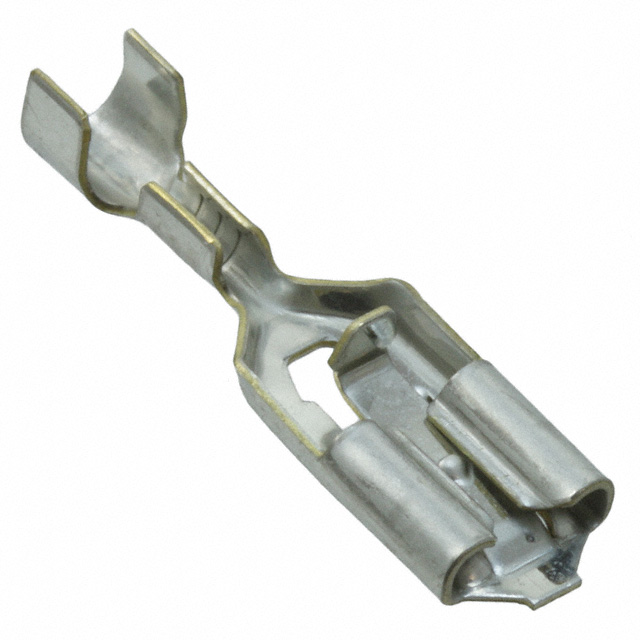

| Part Number | 170325-2 | 170325-5 | 170324-2 | 170325-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | - | - | - | - |
| Length - Overall | 0.850" (21.59mm) | 0.850" (21.59mm) | 0.850" (21.59mm) | 0.850" (21.59mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 16-20 AWG | 20-24 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass |
| Contact Finish | Nickel | Tin | Nickel | Tin |
