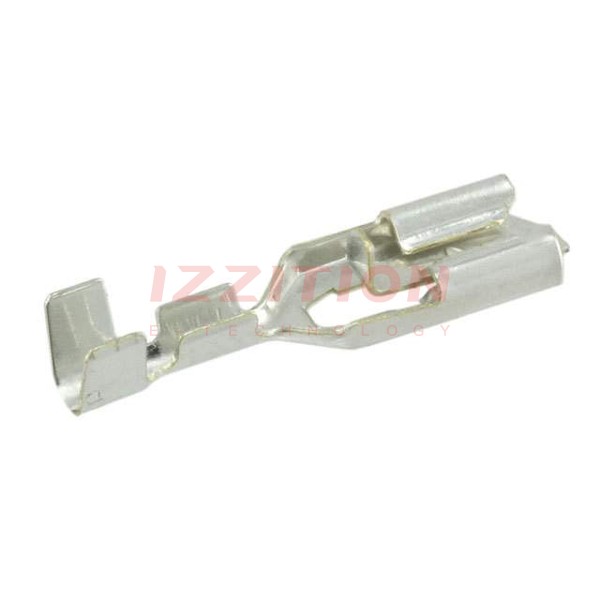

| Part Number | 170324-2 | 170384-2 | 170324-5 | 170325-2 | 170224-2 | 170304-2 | 170324-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | - | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | - | 0.307" (7.80mm) | - | - | 0.307" (7.80mm) | 0.307" (7.80mm) | - |
| Length - Overall | 0.850" (21.59mm) | 0.756" (19.20mm) | 0.850" (21.59mm) | 0.850" (21.59mm) | 0.772" (19.61mm) | 0.756" (19.20mm) | 0.850" (21.59mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 20-22 AWG | 20-24 AWG | 16-20 AWG | 10-15 AWG | 18-22 AWG | 20-24 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze | Brass | Brass | Brass |
| Contact Finish | Nickel | Tin | Tin | Nickel | Tin | - | Tin |
