Please send RFQ , we will respond immediately.

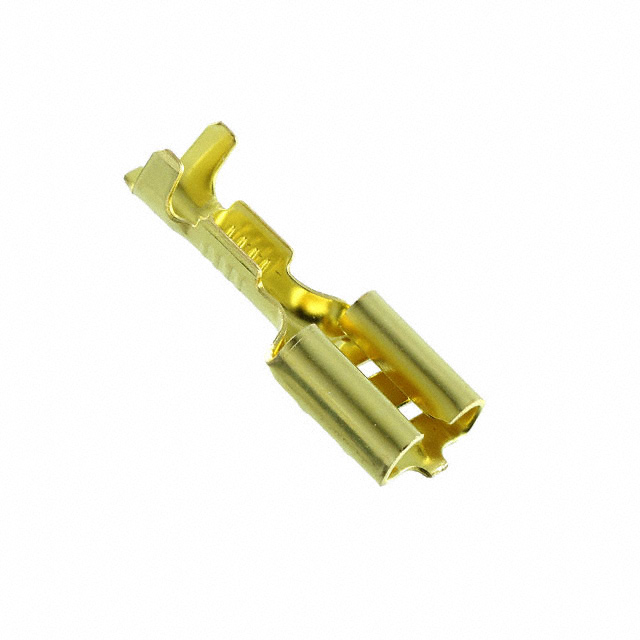

| Part Number | 170213-1 | 170213-3 | 170213-2 | 170233-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | - |
| Length - Overall | 0.744" (18.90mm) | 0.744" (18.90mm) | 0.744" (18.90mm) | 0.870" (22.10mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 14-18 AWG | 14-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Phosphor Bronze | Brass | Brass |
| Contact Finish | - | Tin | Tin | - |
