Please send RFQ , we will respond immediately.

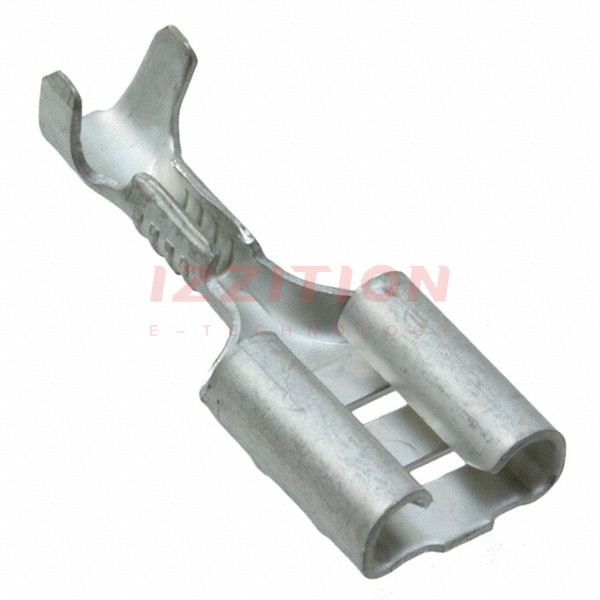

| Part Number | 170183-2 | 170187-2 | 170123-2 | 170153-2 | 170180-2 | 170181-2 | 170182-2 | 170183-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Male | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.205" (5.21mm) | 0.250" (6.35mm) | 0.205" (5.21mm) | 0.205" (5.21mm) | 0.205" (5.21mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.620" (15.75mm) | 0.250" (6.35mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.305" (7.75mm) |
| Length - Overall | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.618" (15.70mm) | 1.161" (29.50mm) | 0.661" (16.80mm) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.750" (19.05mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG | 14-18 AWG | 14-18 AWG | 18-22 AWG | 18-22 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | - |
