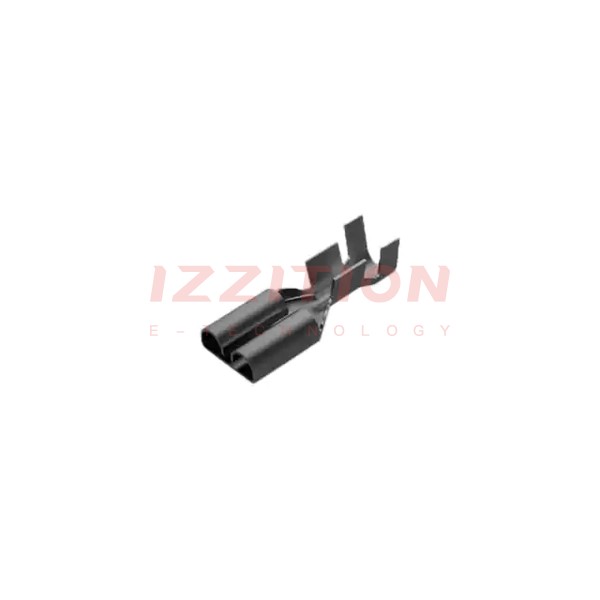

| Part Number | 170089-2 | 170084-2 | 170089-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | - | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) |
| Length - Overall | 0.756" (19.20mm) | 0.764" (19.40mm) | 0.756" (19.20mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 12-14 AWG | 14-18 AWG | 12-14 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | - | - |
