Please send RFQ , we will respond immediately.

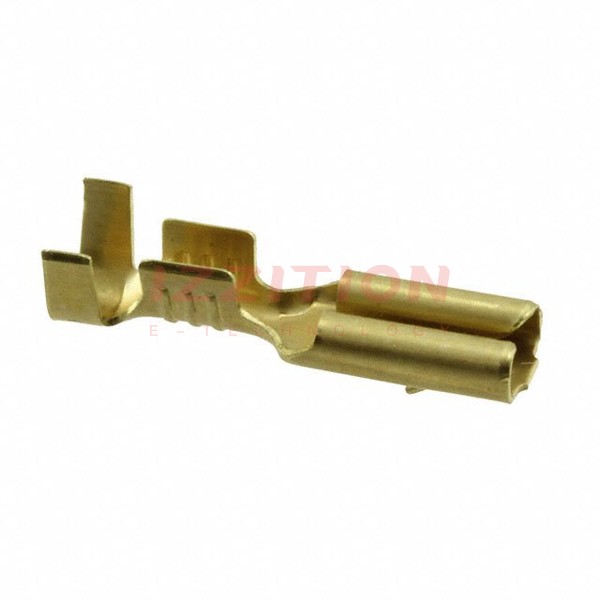

| Part Number | 170042-1 | 170342-1 | 170048-1 | 170032-1 | 170041-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | - | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.248" (6.30mm) | - | 0.252" (6.40mm) | 0.307" (7.80mm) | 0.472" (12.00mm) |
| Length - Overall | 0.610" (15.50mm) | 0.772" (19.61mm) | 0.681" (17.30mm) | 0.756" (19.20mm) | 0.807" (20.50mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 14-20 AWG | 20-24 AWG | 14-20 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | - | - | - | - |
