Please send RFQ , we will respond immediately.

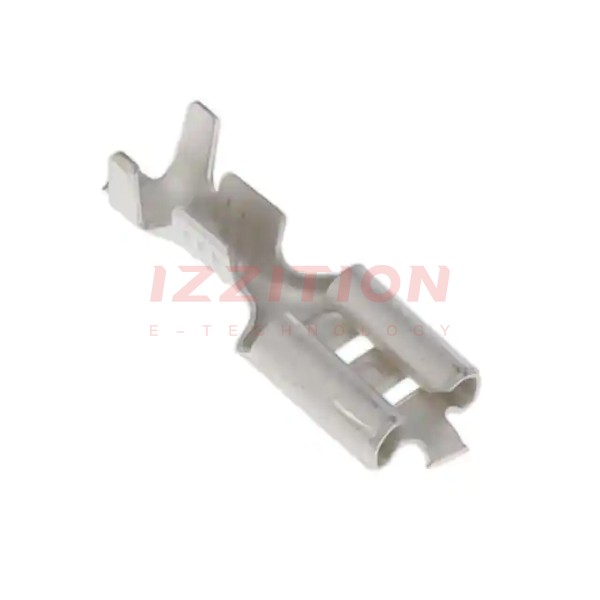

| Part Number | 170037-4 | 170038-4 | 170032-4 | 170037-1 | 170037-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.307" (7.80mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
| Length - Overall | 0.598" (15.20mm) | 0.634" (16.10mm) | 0.756" (19.20mm) | 0.598" (15.20mm) | 0.598" (15.20mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 16-20 AWG | 14-20 AWG | 16-20 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Phosphor Bronze | - | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | - | Tin |
