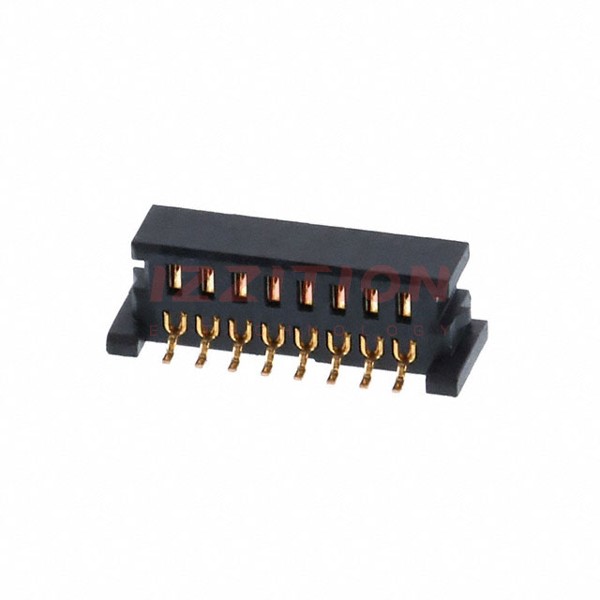

| Part Number | 1674000-2 | 1674000-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Female Blade Socket | Female Blade Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 8 | 8 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.128" (3.25mm) | 0.128" (3.25mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | - | - |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 1A | 1A |
| Voltage Rating | 10VAC | 10VAC |
