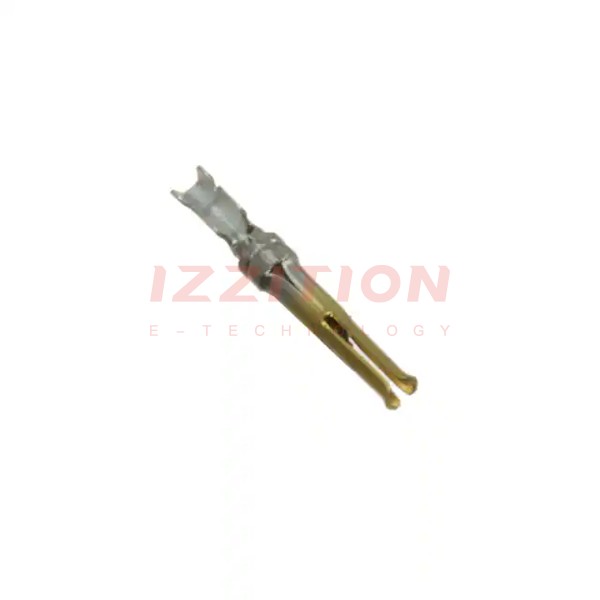

| Part Number | 166292-1 | 166293-1 | 166294-1 | 166291-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Type | Signal | Signal | Signal | Signal |
| Contact Type | Female Socket | Male Pin | Male Pin | Female Socket |
| Contact Form | Stamped | Stamped | Stamped | Stamped |
| Wire Gauge | 24-28 AWG | 20-24 AWG | 24-28 AWG | 20-24 AWG |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Termination Finish | Tin | - | - | - |
| Termination Finish Thickness | - | - | - | - |
| Contact Size | 20 | 20 | 20 | 20 |
| Features | Insulation Support | Insulation Support | Insulation Support | Insulation Support |
