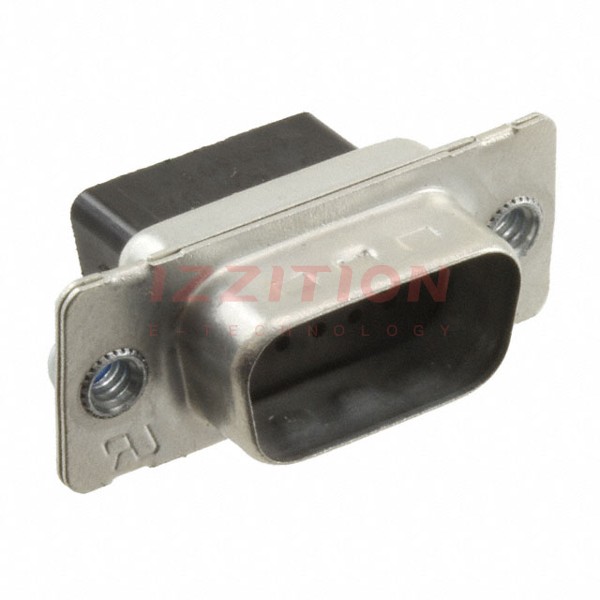

| Part Number | 1658691-1 | 1658641-1 | 1658651-1 | 1658661-1 | 1658671-1 | 1658681-1 | 1658690-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | D-Sub, High Density | D-Sub | D-Sub | D-Sub | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Plug for Male Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts |
| Number of Positions | 15 | 50 | 37 | 50 | 26 | 15 | 15 |
| Number of Rows | 3 | 3 | 2 | 3 | 3 | 3 | 3 |
| Shell Size, Connector Layout | 1 (DE, E) High Density | 5 (DD, D) | 4 (DC, C) | 5 (DD, D) | 2 (DA, A) High Density | 1 (DE, E) High Density | 1 (DE, E) High Density |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) |
| Features | Grounding Indents | Grounding Indents | Shielded | Backshell, Grounding Indents, Shielded | Grounding Indents | - | - |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) |
| Ingress Protection | - | - | - | - | - | - | - |
