Please send RFQ , we will respond immediately.

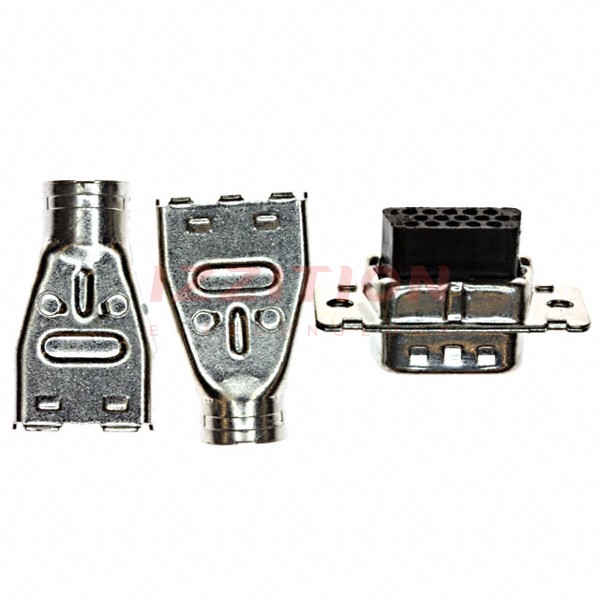

| Part Number | 1658675-1 | 1658685-1 | 1658678-1 | 1658676-1 | 1658677-1 | 1658679-1 | 1658645-1 | 1658655-1 | 1658671-1 | 1658672-1 | 1658673-1 | 1658674-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub | D-Sub | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Plug for Male Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts |
| Number of Positions | 15 | 78 | 15 | 26 | 44 | 26 | 9 | 9 | 26 | 44 | 62 | 78 |
| Number of Rows | 3 | 4 | 3 | 3 | 3 | 3 | 2 | 2 | 3 | 3 | 3 | 4 |
| Shell Size, Connector Layout | 1 (DE, E) High Density | 5 (DD, D) High Density | 1 (DE, E) High Density | 2 (DA, A) High Density | 3 (DB, B) High Density | 2 (DA, A) High Density | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) High Density | 3 (DB, B) High Density | 4 (DC, C) High Density | 5 (DD, D) High Density |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Features | Grounding Indents, Shielded | - | Backshell, Grounding Indents, Shielded | Grounding Indents, Shielded | Grounding Indents, Shielded | Backshell, Grounding Indents, Shielded | Shielded | Backshell, Grounding Indents, Shielded | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents |
| Primary Material | - | - | - | - | - | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - |
