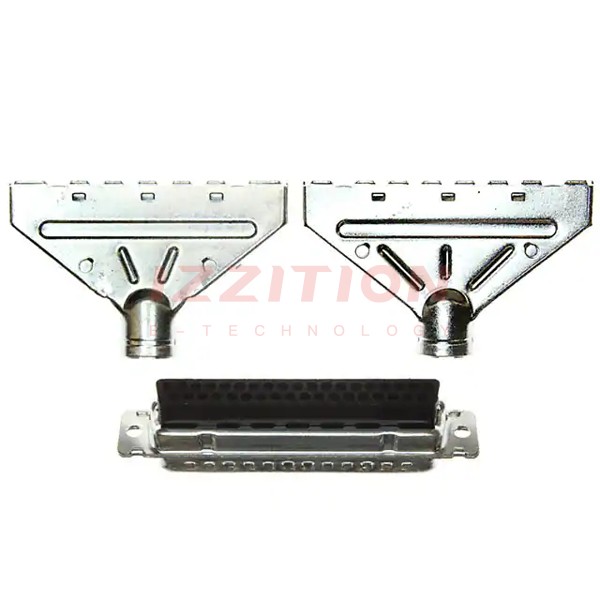

TE Connectivity AMP Connectors 1658650-1

Manufacturer No:
1658650-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1658650-1 Datasheet
ECAD Model:
-
Description:
CONN D-SUB HOUSING PLUG 37POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Plug for Male Contacts
Number of Positions:37
Number of Rows:2
Shell Size, Connector Layout:4 (DC, C)
Contact Type:Signal
Mounting Type:Free Hanging (In-Line)
Flange Feature:Housing/Shell (Unthreaded)
Features:Grounding Indents, Shielded
Primary Material:-
Shell Material, Finish:Steel, Tin Plated
Shell Finish Thickness:200µin (5.08µm)
Ingress Protection:-
0 Remaining View Similar

In Stock

$13.78
27

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1658650-1 1658654-1   1658658-1   1658680-1   1658652-1   1658657-1   1658653-1   1658651-1   1658656-1   1658690-1   1658655-1   1658659-1   1658660-1   1658640-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active Active
Connector Style D-Sub D-Sub D-Sub D-Sub, High Density D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub, High Density D-Sub D-Sub D-Sub D-Sub
Connector Type Plug for Male Contacts Receptacle for Female Contacts Receptacle for Female Contacts Plug for Male Contacts Plug for Male Contacts Plug for Male Contacts Receptacle for Female Contacts Receptacle for Female Contacts Receptacle for Female Contacts Receptacle for Female Contacts Plug for Male Contacts Plug for Male Contacts Receptacle for Female Contacts Receptacle for Female Contacts
Number of Positions 37 9 25 44 50 15 50 37 15 15 9 25 37 50
Number of Rows 2 2 2 3 3 2 3 2 2 3 2 2 2 3
Shell Size, Connector Layout 4 (DC, C) 1 (DE, E) 3 (DB, B) 3 (DB, B) High Density 5 (DD, D) 2 (DA, A) 5 (DD, D) 4 (DC, C) 2 (DA, A) 1 (DE, E) High Density 1 (DE, E) 3 (DB, B) 4 (DC, C) 5 (DD, D)
Contact Type Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Housing/Shell (Unthreaded) Cable Side (4-40) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Housing/Shell (Unthreaded)
Features Grounding Indents, Shielded Backshell, Shielded Backshell, Shielded Backshell, Grounding Indents, Shielded Grounding Indents, Shielded Backshell, Grounding Indents, Shielded Shielded Shielded Backshell, Shielded - Backshell, Grounding Indents, Shielded Backshell, Grounding Indents, Shielded Backshell, Shielded -
Primary Material - - - - - - - - - - - - - -
Shell Material, Finish Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm) 200µin (5.08µm)
Ingress Protection - - - - - - - - - - - - - -
