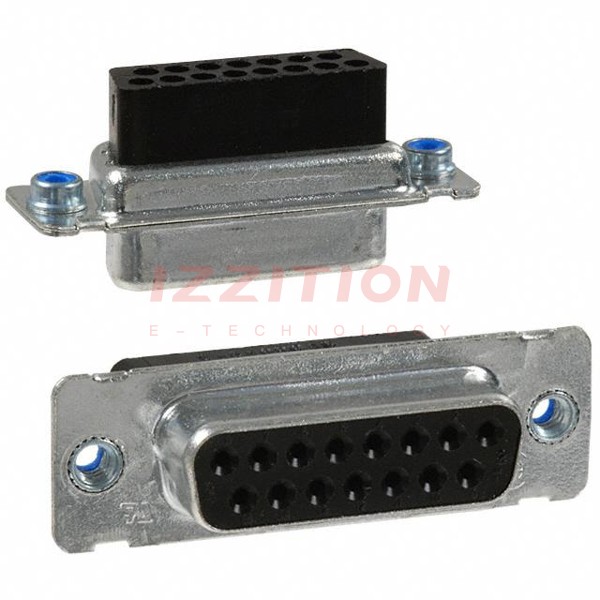

| Part Number | 1658644-1 | 1658646-1 | 1658648-1 | 1658684-1 | 1658654-1 | 1658647-1 | 1658649-1 | 1658645-1 | 1658674-1 | 1658640-1 | 1658641-1 | 1658642-1 | 1658643-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub, High Density | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub, High Density | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Plug for Male Contacts | Receptacle for Female Contacts |
| Number of Positions | 15 | 9 | 25 | 62 | 9 | 15 | 25 | 9 | 78 | 50 | 50 | 9 | 9 |
| Number of Rows | 2 | 2 | 2 | 3 | 2 | 2 | 2 | 2 | 4 | 3 | 3 | 2 | 2 |
| Shell Size, Connector Layout | 2 (DA, A) | 1 (DE, E) | 3 (DB, B) | 4 (DC, C) High Density | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 1 (DE, E) | 5 (DD, D) High Density | 5 (DD, D) | 5 (DD, D) | 1 (DE, E) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Cable Side (4-40) |
| Features | - | Shielded | Grounding Indents, Shielded | - | Backshell, Shielded | Grounding Indents, Shielded | Shielded | Shielded | Grounding Indents | - | Grounding Indents | Grounding Indents | - |
| Primary Material | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) | 200µin (5.08µm) |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - | - |
