Please send RFQ , we will respond immediately.

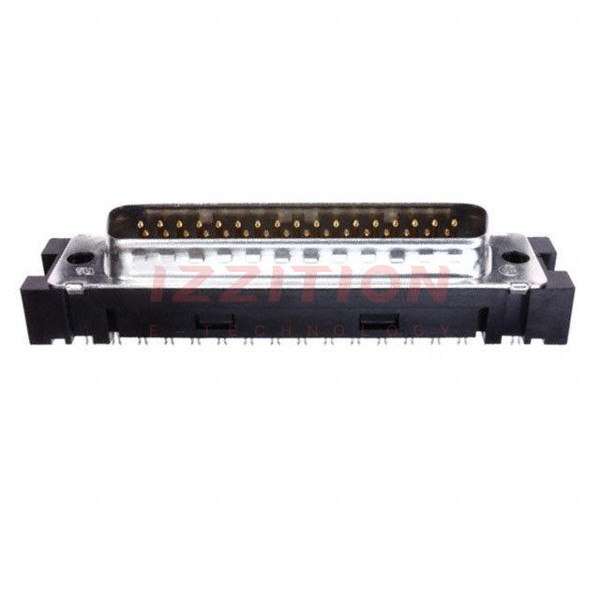

| Part Number | 1658607-1 | 1658609-1 | 1658608-1 | 1658606-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 50 | 37 | 37 | 50 |
| Number of Rows | 3 | 2 | 2 | 3 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 5 (DD, D) | 4 (DC, C) | 4 (DC, C) | 5 (DD, D) |
| Contact Type | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable |
| Primary Material | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | - | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1.25A | 1.25A | 1.25A | 1.25A |
| Backset Spacing | - | - | - | - |
| Features | Feed Through, Grounding Indents | Feed Through | Feed Through, Grounding Indents | Feed Through |
