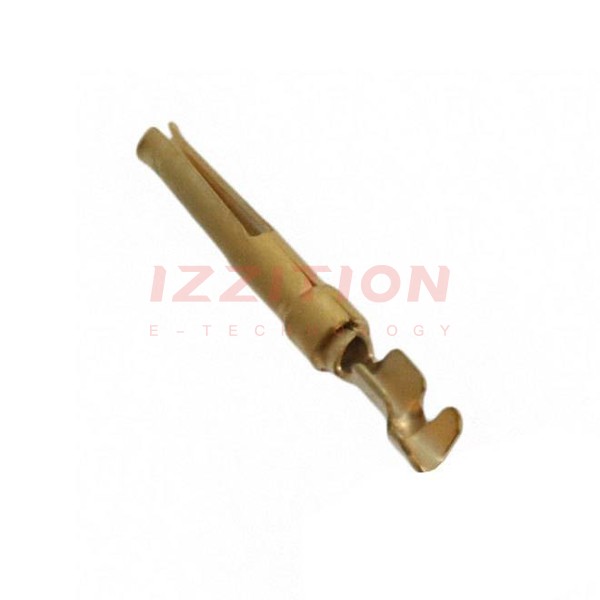

| Part Number | 1658543-1 | 1658543-2 | 1658544-1 | 1658543-3 | 1658540-1 | 1658541-1 | 1658542-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Stamped | Stamped | Stamped | Stamped | Stamped | Stamped | Stamped |
| Pin or Socket | Socket | Socket | Pin | Socket | Pin | Pin | Socket |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 24-28 AWG | 18-22 AWG | 18-22 AWG |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze | Brass | Brass | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | Flash | 30.0µin (0.76µm) | Flash |
