Home
All Products
Connectors, Interconnects
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
1658014-3

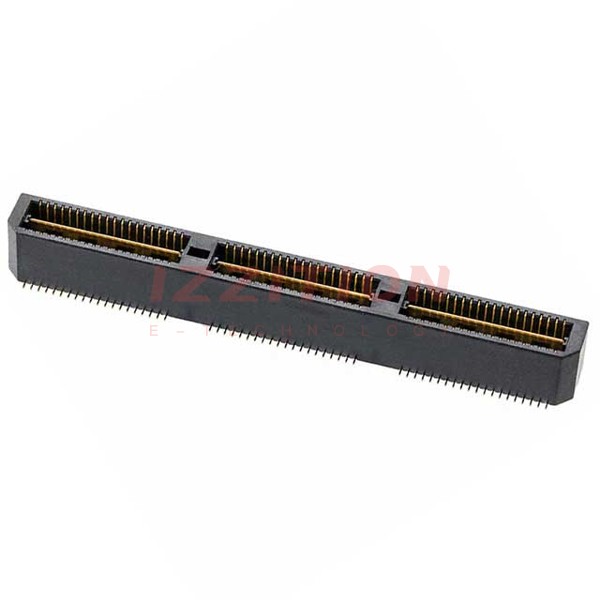

1658014-3 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 1658014-3
Manufacturer No:
1658014-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1658014-3 Datasheet
ECAD Model:
-
Description:
CONN PLUG 120POS SMD GOLD
Delivery:
Payment:
Product Attributes
Connector Type:
Plug, Outer Shroud Contacts
Number of Positions:
120
Pitch:
0.031" (0.80mm)
Number of Rows:
2
Mounting Type:
Surface Mount
Features:
Board Guide, Ground Bus (Plane)
Contact Finish:
Gold
Contact Finish Thickness:
10.0µin (0.25µm)
Mated Stacking Heights:
8mm
Height Above Board:
0.278" (7.06mm)
0
Remaining
View Similar
In Stock
UnitPrice:
$17.52
Quantity:
21
