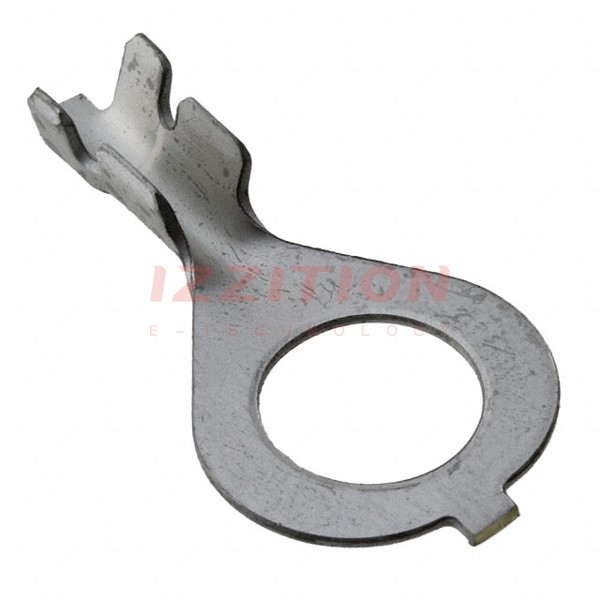

| Part Number | 160789-5 | 160789-2 | 160789-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | - | - | - |
| Thickness | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) |
| Width - Outer Edges | 0.547" (13.90mm) | 0.547" (13.90mm) | 0.547" (13.90mm) |
| Length - Overall | 0.972" (24.70mm) | 0.972" (24.70mm) | 0.972" (24.70mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 15-17 AWG | 15-17 AWG | 15-17 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Phosphor Bronze | Brass | Phosphor Bronze |
| Contact Finish | - | Tin | - |
