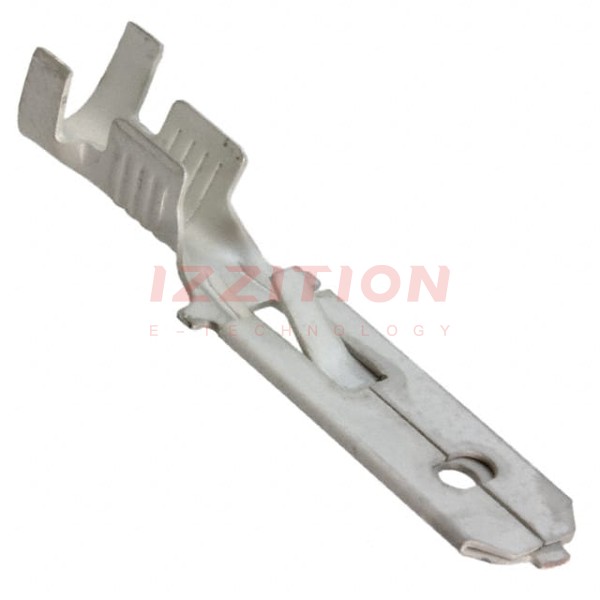

| Part Number | 160786-2 | 160780-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.620" (15.75mm) | 0.248" (6.30mm) |
| Length - Overall | 1.102" (28.00mm) | 0.551" (14.00mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 11-14 AWG | 15-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin |
