Please send RFQ , we will respond immediately.

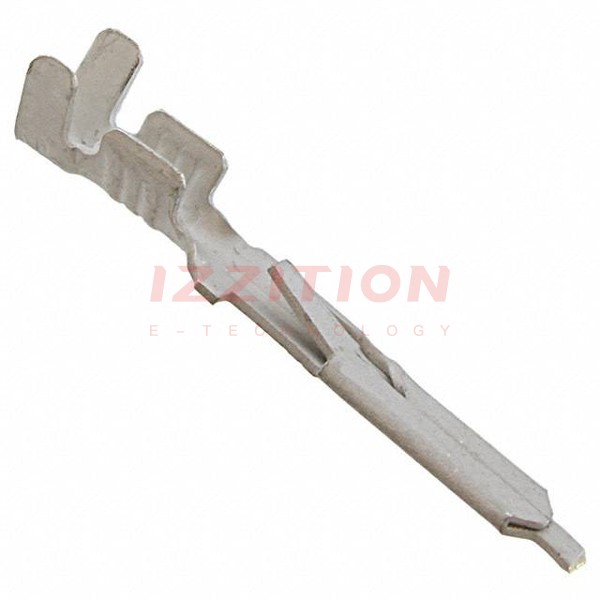

| Part Number | 160743-4 | 160773-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Male | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.500" (12.70mm) | - |
| Length - Overall | 0.866" (22.00mm) | 0.902" (22.91mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 15.5-20 AWG | 15.5-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin |
