Please send RFQ , we will respond immediately.

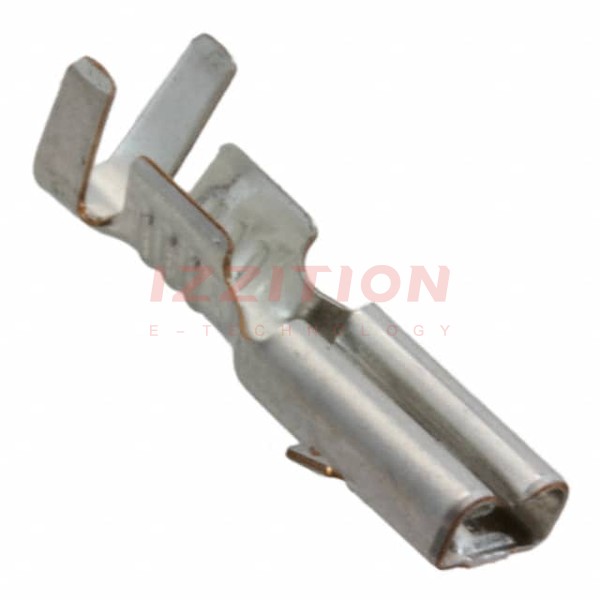

| Part Number | 160684-2 | 160684-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.248" (6.30mm) | 0.248" (6.30mm) |
| Length - Overall | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 17-20 AWG | 17-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin |
