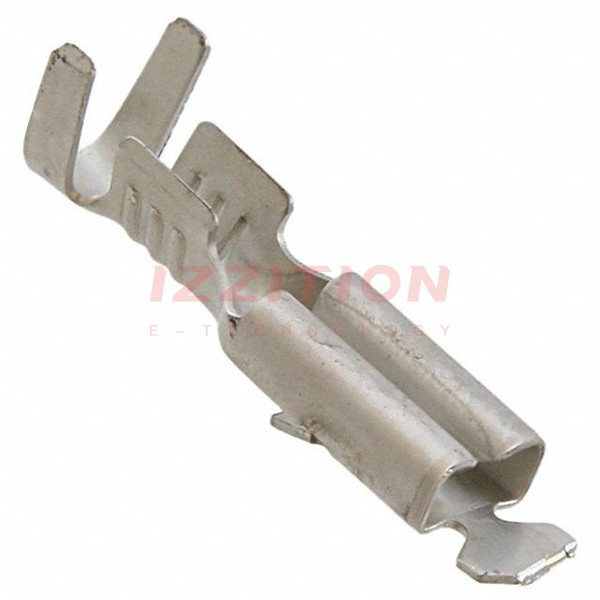

| Part Number | 160655-6 | 160655-1 | 160655-2 | 160655-3 | 160655-4 | 160655-5 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
| Length - Overall | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 15.5-20 AWG | 15.5-20 AWG | 15.5-20 AWG | 15.5-20 AWG | 15.5-20 AWG | 15.5-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze | Phosphor Bronze | Brass |
| Contact Finish | Tin | - | Tin | - | Tin | Silver |
