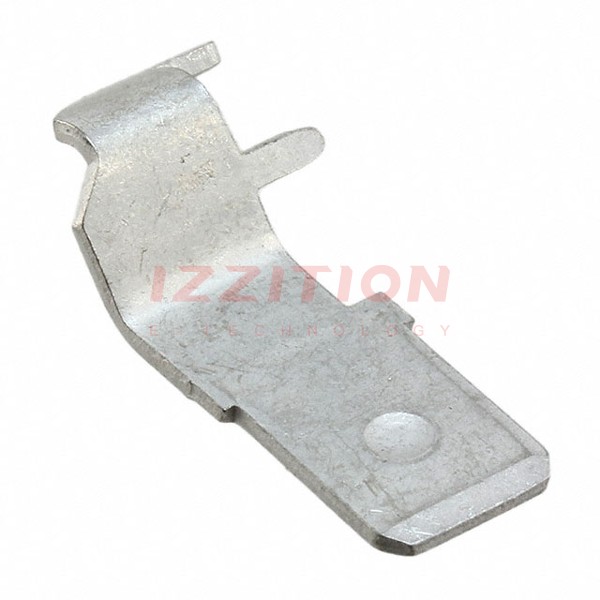

| Part Number | 160650-2 | 160655-2 | 160650-3 | 160450-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Male | Female | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.311" (7.90mm) | 0.248" (6.30mm) | 0.311" (7.90mm) | - |
| Length - Overall | - | 0.551" (14.00mm) | - | 1.181" (30.00mm) |
| Termination | Solder | Crimp | Solder | Crimp |
| Wire Gauge | - | 15.5-20 AWG | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole, Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | Serrated Termination |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin |
