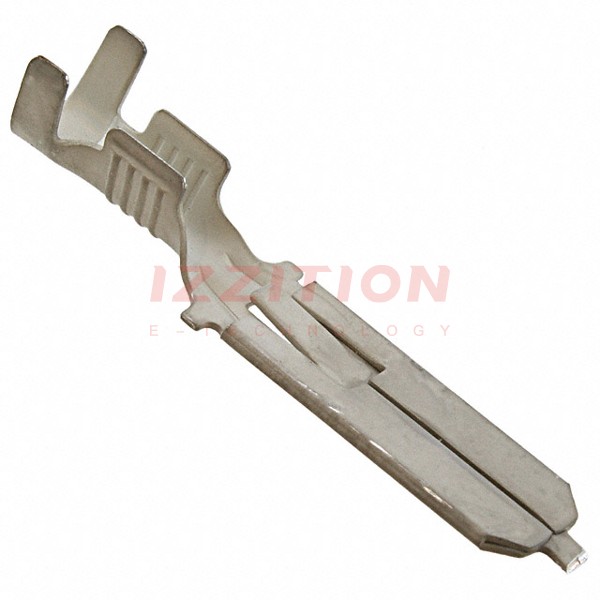

| Part Number | 160450-2 | 160457-2 | 160451-2 | 160458-2 | 160650-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Male | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.620" (15.75mm) | - | - | 0.311" (7.90mm) |
| Length - Overall | 1.181" (30.00mm) | 1.102" (27.99mm) | 1.106" (28.10mm) | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 14-18 AWG | 14-18 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle |
| Features | Serrated Termination | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
