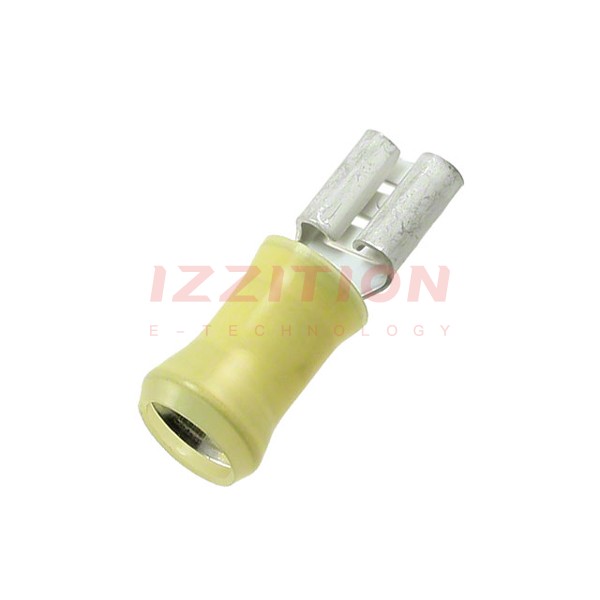

| Part Number | 160314-2 | 160914-2 | 160314-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.031" (0.79mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) |
| Length - Overall | 1.015" (25.78mm) | 0.756" (19.20mm) | 1.015" (25.78mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-11.5 AWG | 10-11 AWG | 10-11.5 AWG |
| Insulation | Non-Mating End Insulated | Non-Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | Yellow | - | Yellow |
| Contact Material | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin |
