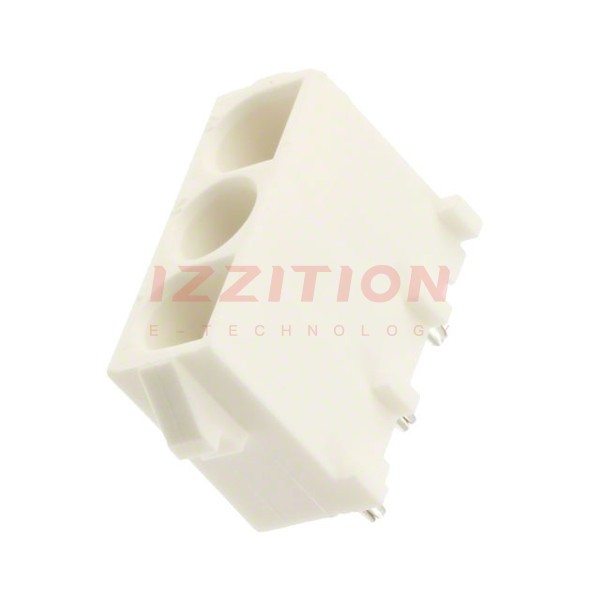

| Part Number | 1586869-1 | 1586866-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Socket |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Board or Cable |
| Number of Positions | 3 | 2 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Latch Lock |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Insulation Color | Natural | Natural |
| Insulation Height | 0.580" (14.73mm) | 0.580" (14.73mm) |
| Contact Length - Post | 0.155" (3.94mm) | - |
| Operating Temperature | -40°C ~ 105°C | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
