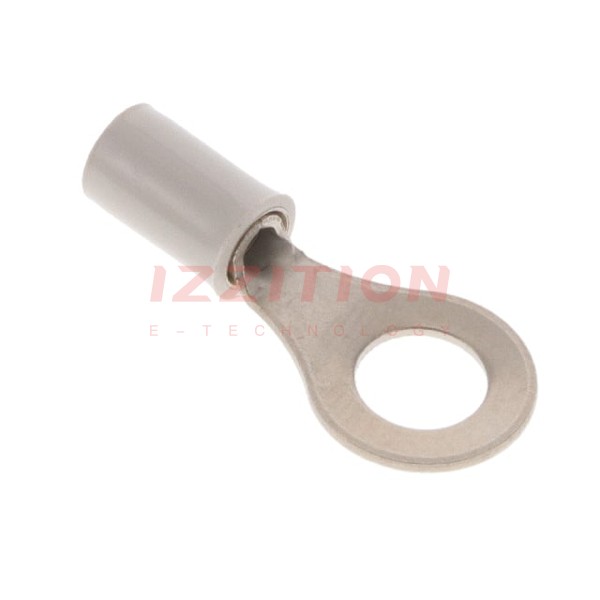

| Part Number | 1577641-1 | 1577649-1 | 1577647-1 | 1577621-1 | 1577631-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 5/16 Stud | 10 Stud | 10 Stud | 6 Stud |
| Thickness | 0.032" (0.81mm) | 0.038" (0.97mm) | 0.039" (0.99mm) | 0.032" (0.81mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.469" (11.91mm) | 0.531" (13.49mm) | 0.375" (9.53mm) | 0.281" (7.14mm) | 0.281" (7.14mm) |
| Length - Overall | 1.124" (28.55mm) | 1.358" (34.50mm) | 1.119" (28.43mm) | 0.839" (21.30mm) | 0.836" (21.23mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 12-14 AWG | 10 AWG | 10 AWG | 22-24 AWG | 16-18 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Beige | Black | Black | Brown | Orange |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
