Please send RFQ , we will respond immediately.

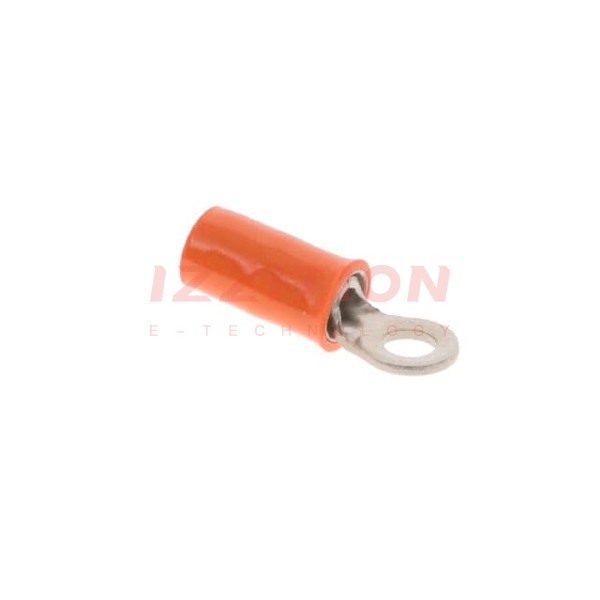

| Part Number | 1577630-1 | 1577631-1 | 1577638-1 | 1577634-1 | 1577639-1 | 1577633-1 | 1577636-1 | 1577620-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 4 Stud | 6 Stud | 6 Stud | 1/4 Stud | 8 Stud | 10 Stud | 3/8 Stud | 8 Stud |
| Thickness | 0.032" (0.81mm) | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.250" (6.35mm) | 0.469" (11.91mm) | 0.343" (8.71mm) | 0.312" (7.92mm) | 0.531" (13.49mm) | 0.281" (7.14mm) |
| Length - Overall | 0.711" (18.06mm) | 0.836" (21.23mm) | 0.749" (19.02mm) | 1.117" (28.37mm) | 0.905" (22.99mm) | 0.883" (22.43mm) | 1.242" (31.55mm) | 0.839" (21.30mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-18 AWG | 16-18 AWG | 12-14 AWG | 16-18 AWG | 12-14 AWG | 16-18 AWG | 16-18 AWG | 22-24 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Orange | Orange | Beige | Orange | Beige | Orange | Beige | Brown |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
