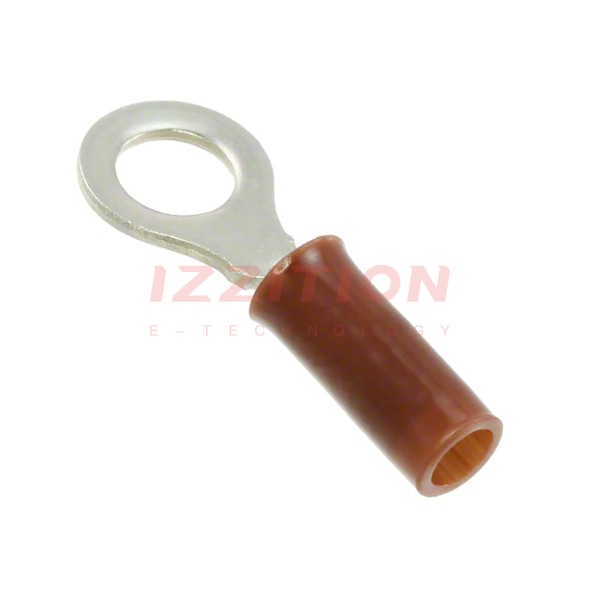

| Part Number | 1577620-1 | 1577623-1 | 1577625-1 | 1577626-1 | 1577622-1 | 1577630-1 | 1577621-1 | 1577624-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 8 Stud | 6 Stud | 4 Stud | 4 Stud | 4 Stud | 10 Stud | 10 Stud |
| Thickness | 0.032" (0.81mm) | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Width - Outer Edges | 0.281" (7.14mm) | 0.281" (7.14mm) | 0.218" (5.54mm) | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.281" (7.14mm) |
| Length - Overall | 0.839" (21.30mm) | 0.833" (21.16mm) | 0.708" (17.98mm) | 0.708" (17.98mm) | 0.833" (21.16mm) | 0.711" (18.06mm) | 0.839" (21.30mm) | 0.833" (21.16mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22-24 AWG | 20 AWG | 20 AWG | 20 AWG | 20 AWG | 16-18 AWG | 22-24 AWG | 20 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Brown | Gray | Gray | Gray | Gray | Orange | Brown | Gray |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
