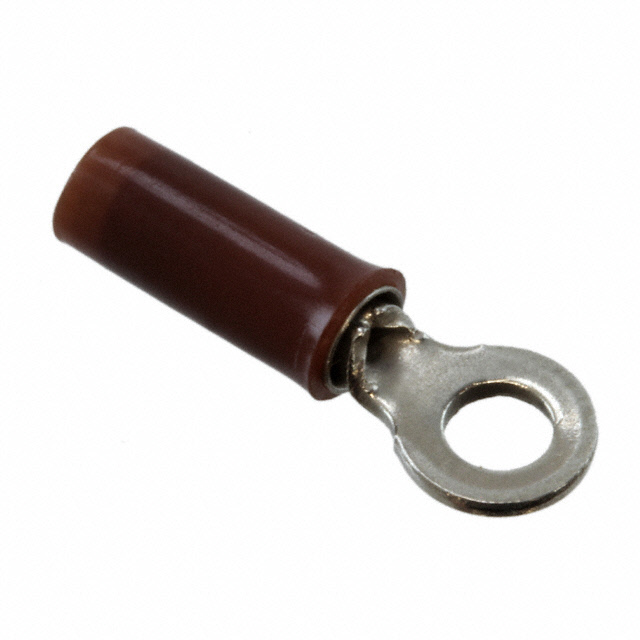

| Part Number | 1577616-1 | 1577619-1 | 1577626-1 | 1577618-1 | 1577636-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 4 Stud | 6 Stud | 4 Stud | 4 Stud | 3/8 Stud |
| Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.531" (13.49mm) |
| Length - Overall | 0.710" (18.03mm) | 0.839" (21.30mm) | 0.708" (17.98mm) | 0.839" (21.30mm) | 1.242" (31.55mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22-24 AWG | 22-24 AWG | 20 AWG | 22-24 AWG | 16-18 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Brown | Brown | Gray | Brown | Beige |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
