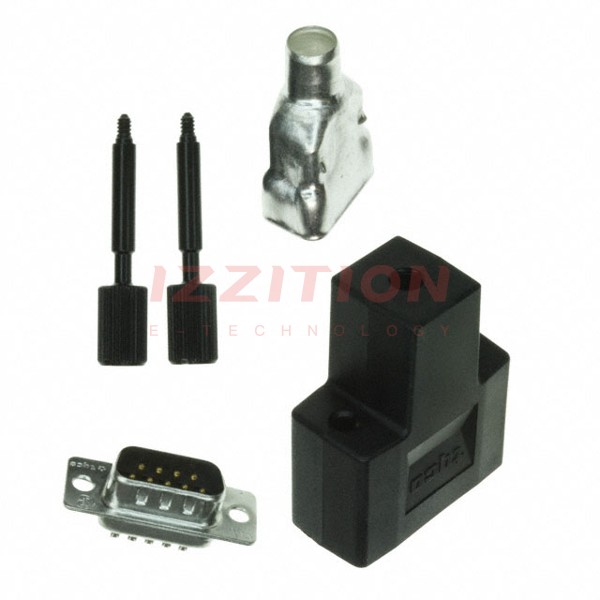

| Part Number | 1571650-4 | 1571654-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 9 | 9 |
| Number of Rows | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 1 (DE, E) | 1 (DE, E) |
| Contact Type | Signal | Signal |
| Flange Feature | Cable Side, Male Jackscrew | Cable Side, Male Jackscrew |
| Termination | Solder Cup | Solder Cup |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A |
| Backset Spacing | - | - |
| Features | Backshell, Grounding Indents, Mounting Screws, Shielded | Backshell, Cover, Mounting Hardware, Shielded |
