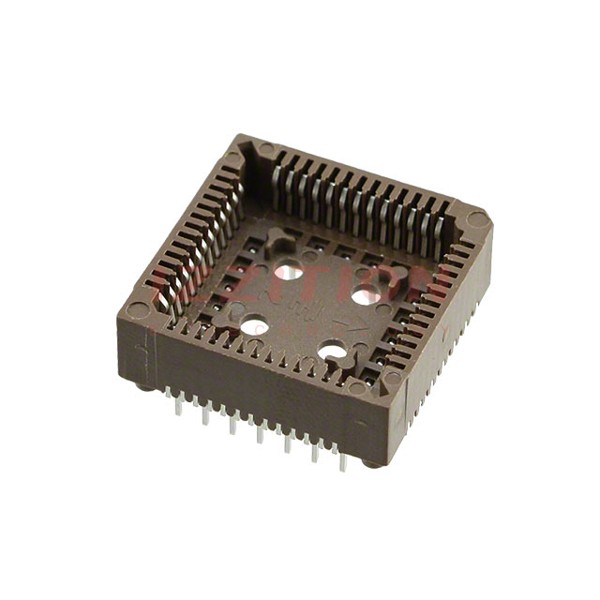

| Part Number | 1571541-2 | 1571541-4 | 1571541-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | PLCC | PLCC | PLCC |
| Number of Positions or Pins (Grid) | 52 (4 x 13) | 84 (4 x 21) | 44 (4 x 11) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | 180.0µin (4.57µm) | 180.0µin (4.57µm) | 180.0µin (4.57µm) |
| Contact Material - Mating | Copper Alloy | Copper Alloy | Copper Alloy |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame | Closed Frame |
| Termination | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Finish Thickness - Post | 180.0µin (4.57µm) | 180.0µin (4.57µm) | 180.0µin (4.57µm) |
| Contact Material - Post | Copper Alloy | Copper Alloy | Copper Alloy |
| Housing Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Operating Temperature | - | - | - |
