1565371-3
  • Share:

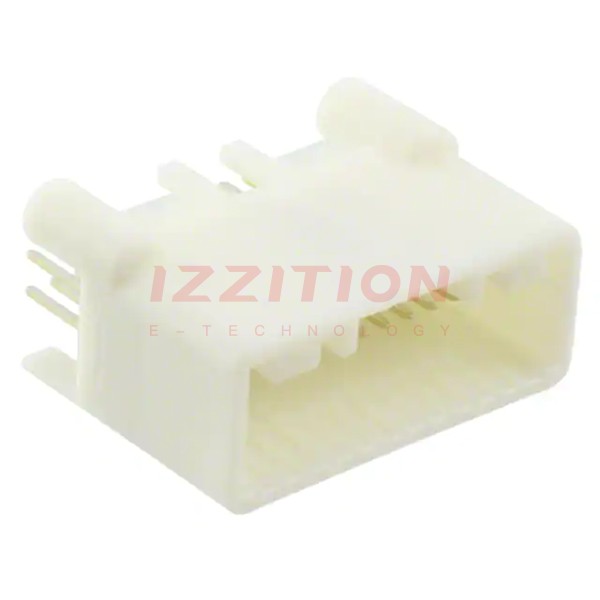

TE Connectivity AMP Connectors 1565371-3

Manufacturer No:
1565371-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1565371-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 26POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:1.020" (25.91mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:12VDC
0 Remaining View Similar

In Stock

$2.44
136

Please send RFQ , we will respond immediately.
