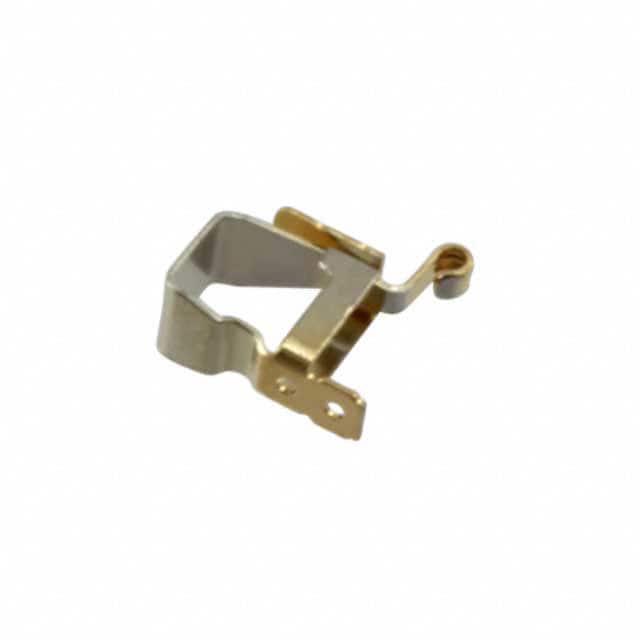

| Part Number | 1551576-5 | 1551572-5 | 1551573-5 | 1551574-5 | 1551575-5 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Type | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded | Shield Finger, Pre-Loaded |
| Shape | - | - | - | - | - |
| Width | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) |
| Length | 0.128" (3.26mm) | 0.128" (3.26mm) | 0.128" (3.26mm) | 0.128" (3.26mm) | 0.128" (3.26mm) |
| Height | 0.134" (3.40mm) | 0.071" (1.80mm) | 0.085" (2.15mm) | 0.102" (2.60mm) | 0.118" (3.00mm) |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Plating | Gold | Gold | Gold | Gold | Gold |
| Plating - Thickness | 11.811µin (0.30µm) | 19.69µin (0.50µm) | 19.69µin (0.50µm) | 19.69µin (0.50µm) | 11.81µin (0.30µm) |
| Attachment Method | Solder | Solder | Solder | Solder | Solder |
| Operating Temperature | - | - | - | - | - |
