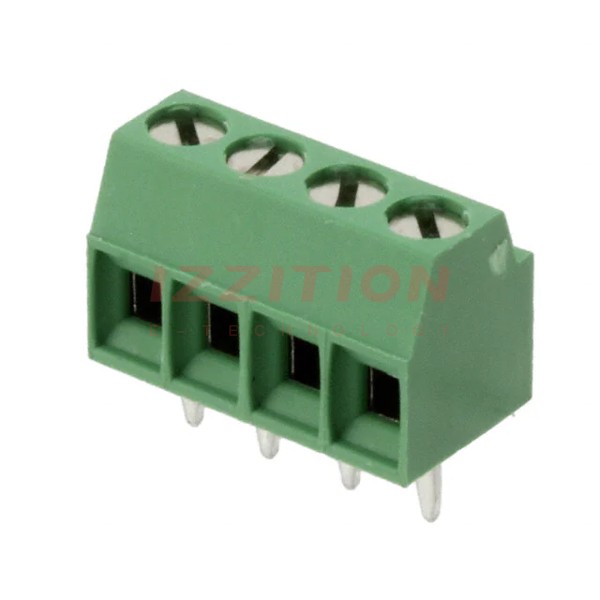

| Part Number | 1546551-4 | 1546551-5 | 1546551-2 | 1546551-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 |
| Positions Per Level | 4 | 5 | 2 | 3 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 12 A | 12 A | 12 A | 12 A |
| Voltage | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 16-28 AWG | 16-28 AWG | 16-28 AWG | 16-28 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | - | - | - | - |
| Color | Green | Green | Green | Green |
