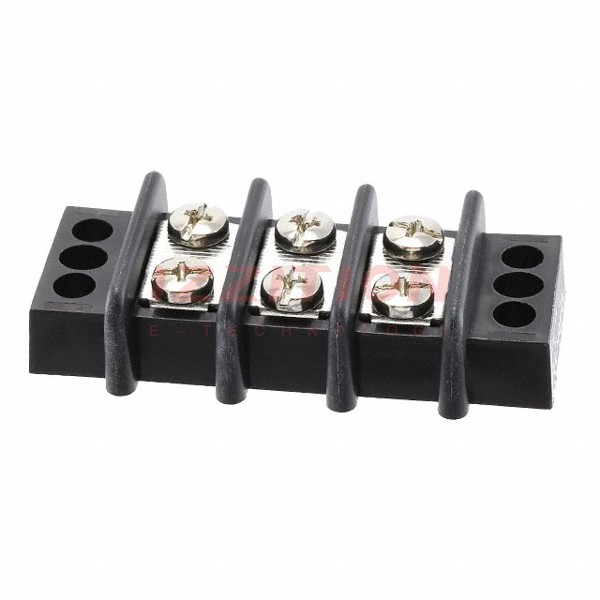

| Part Number | 1546310-3 | 1546310-8 | 1546310-4 | 1546310-7 | 1546310-6 | 1546310-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 3 | 8 | 4 | 7 | 6 | 2 |
| Number of Wire Entries | 6 | 16 | 8 | 14 | 12 | 4 |
| Pitch | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.563" (14.30mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Current Rating (Amps) | 30A | 30A | 30A | 30A | 30A | 30A |
| Voltage Rating | 300V | 300V | 300V | 300V | 300V | 300V |
| Wire Gauge | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG |
| Top Termination | Screws | Screws | Screws | Screws | Screws | Screws |
| Bottom Termination | Closed | Closed | Closed | Closed | Closed | Closed |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) |
| Features | Flange | Flange | Flange | Flange | Flange | Flange |
| Color | Black | Black | Black | Black | Black | Black |
